Gearbox Counter Design

Overview

Compact multi-stage spur gearbox designed for a client under strict dimensional and functional constraints. Achieved a validated 12:1 reduction within a highly limited envelope.

Specifications

  • Reduction Ratio: 12:1 (validated via motion study)
  • Architecture: 4-stage compound spur gear train
  • Module: 0.6 mm
  • Max Diameter: 45 mm
  • Max Height: 11 mm

Design Constraints

  • Fit complete gear system within Ø45 mm × 11 mm enclosure
  • Accept Ø6 mm D-shaft input
  • Provide Ø2 mm output shaft with 3 mm protrusion
  • Ensure full compatibility with FDM 3D printing

⭐⭐⭐⭐⭐

Great working with Numan!

Shakoor Siddeeq

Client

Design Approach

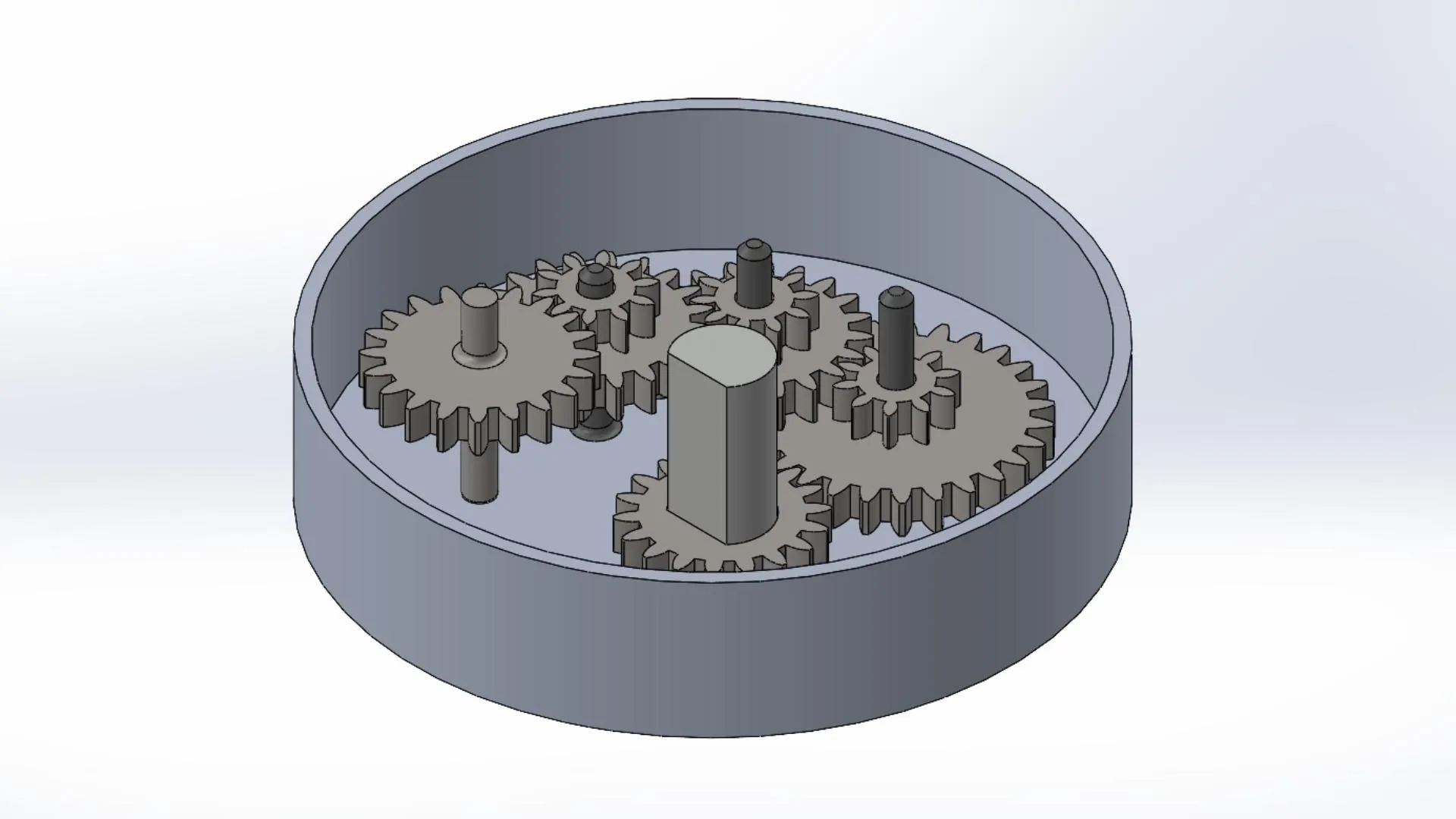

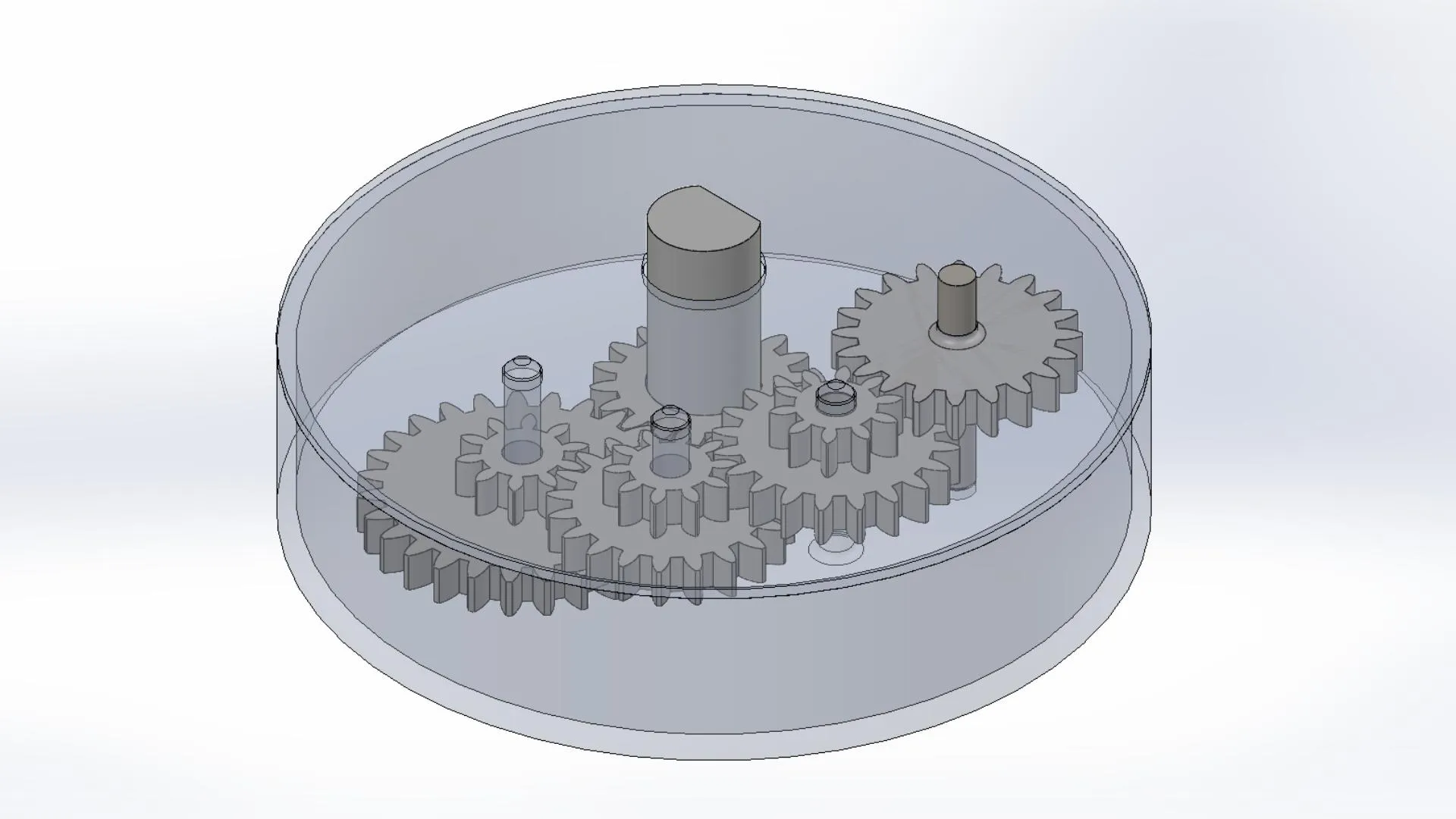

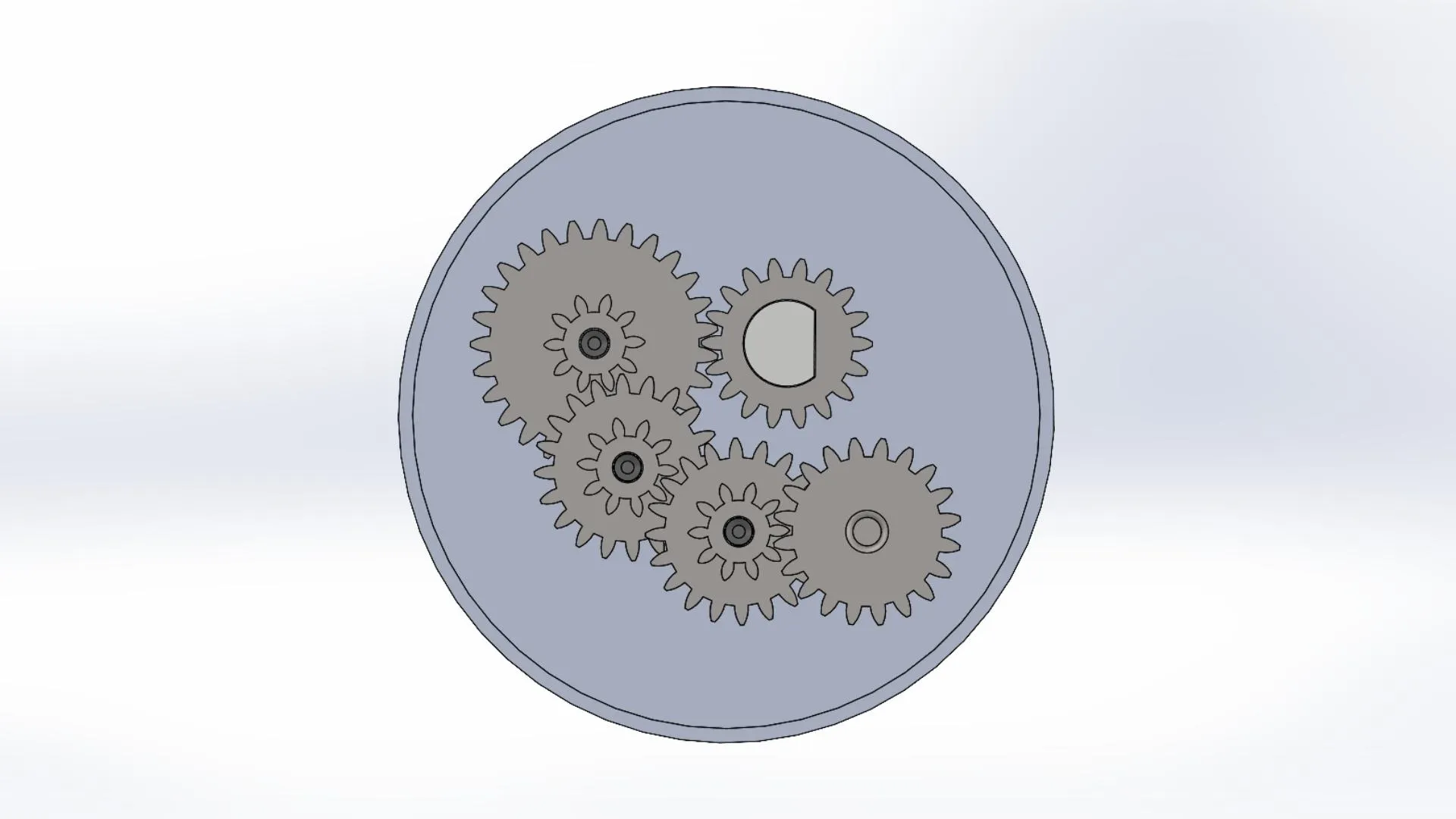

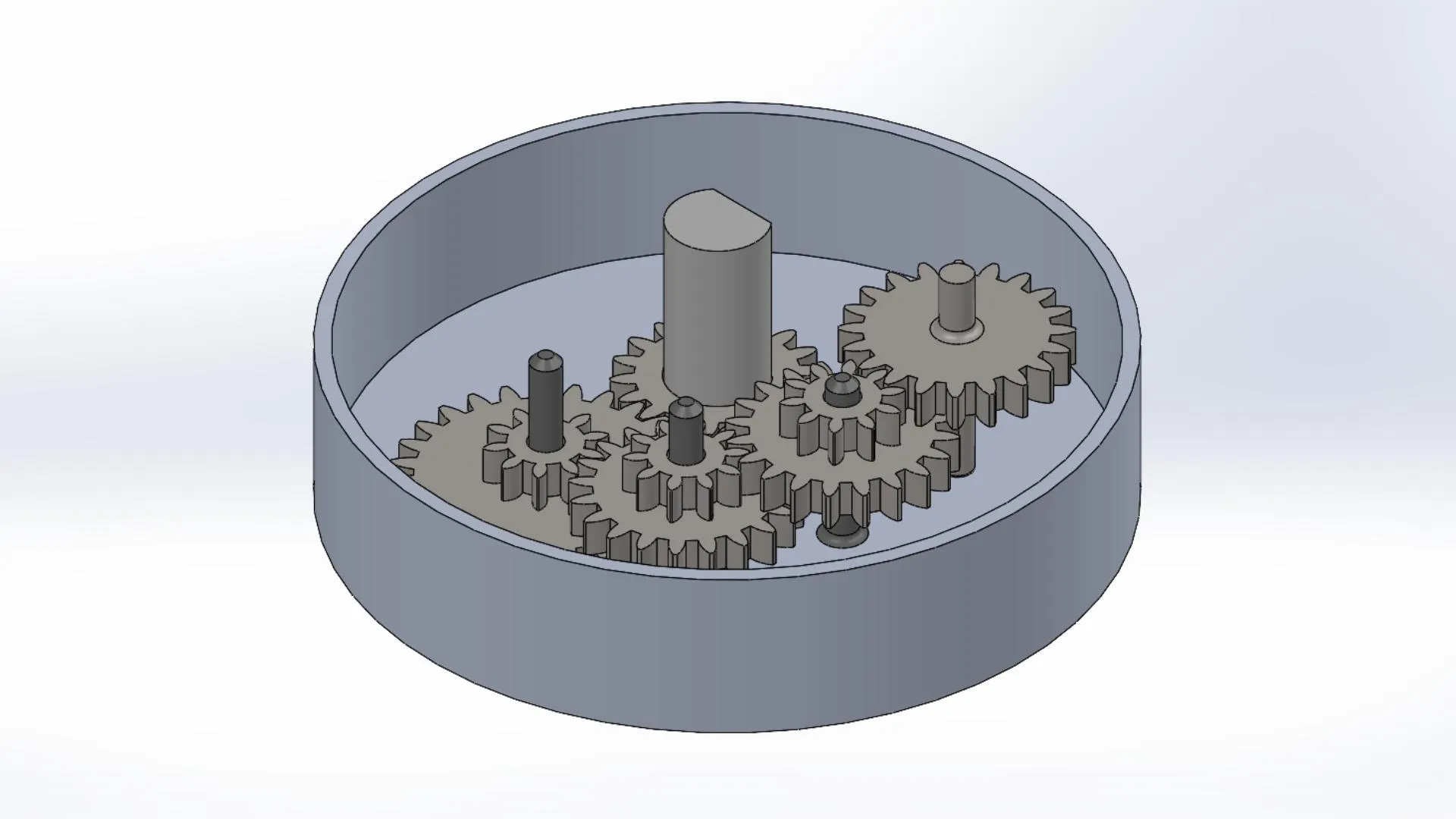

A vertically stacked multi-stage gear train was used to achieve the required reduction within tight spatial constraints. Gear geometry and spacing were optimized to maintain smooth meshing while minimizing interference.

Backlash was introduced (~0.05 mm per mesh) to prevent binding without altering center distances, ensuring reliable motion under manufacturing tolerances.

Key Features

  • 4-stage reduction achieving compact high-ratio transmission
  • Optimized shaft–gear clearance (~0.25 mm) for friction-free rotation
  • Fully 3D-printable architecture with no assembly interference

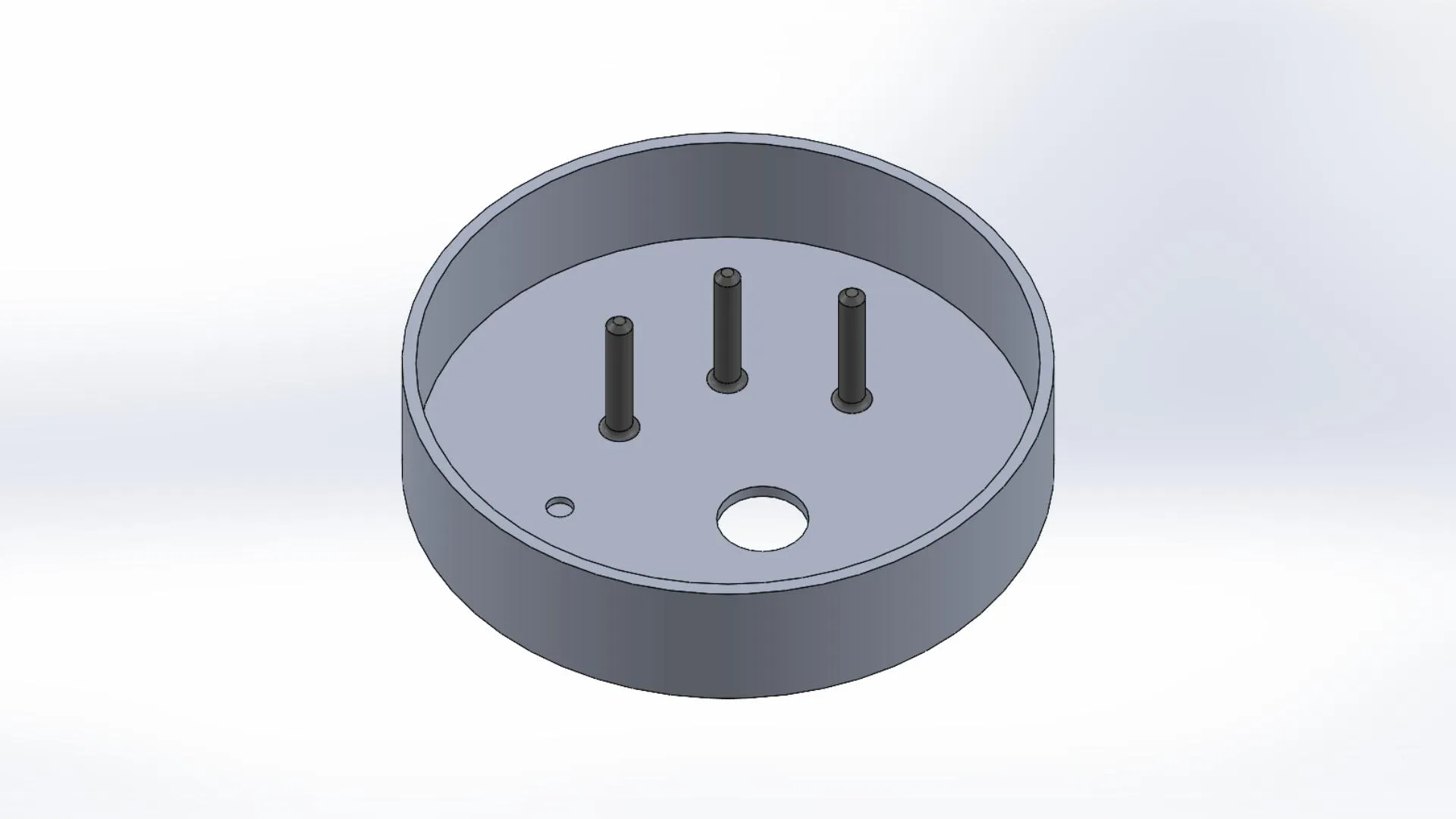

  • Integrated housing and shaft design for simplified assembly

Validation

  • Motion study confirmed full 12:1 reduction
  • No radial or vertical interference detected
  • Assembly verified for continuous rotation and manufacturability

Outcome

Delivered a fully functional, compact gearbox design meeting all specified dimensional and performance constraints, with validated motion behavior and print-ready components.
