Mercedes F1 W16 Controller

Overview

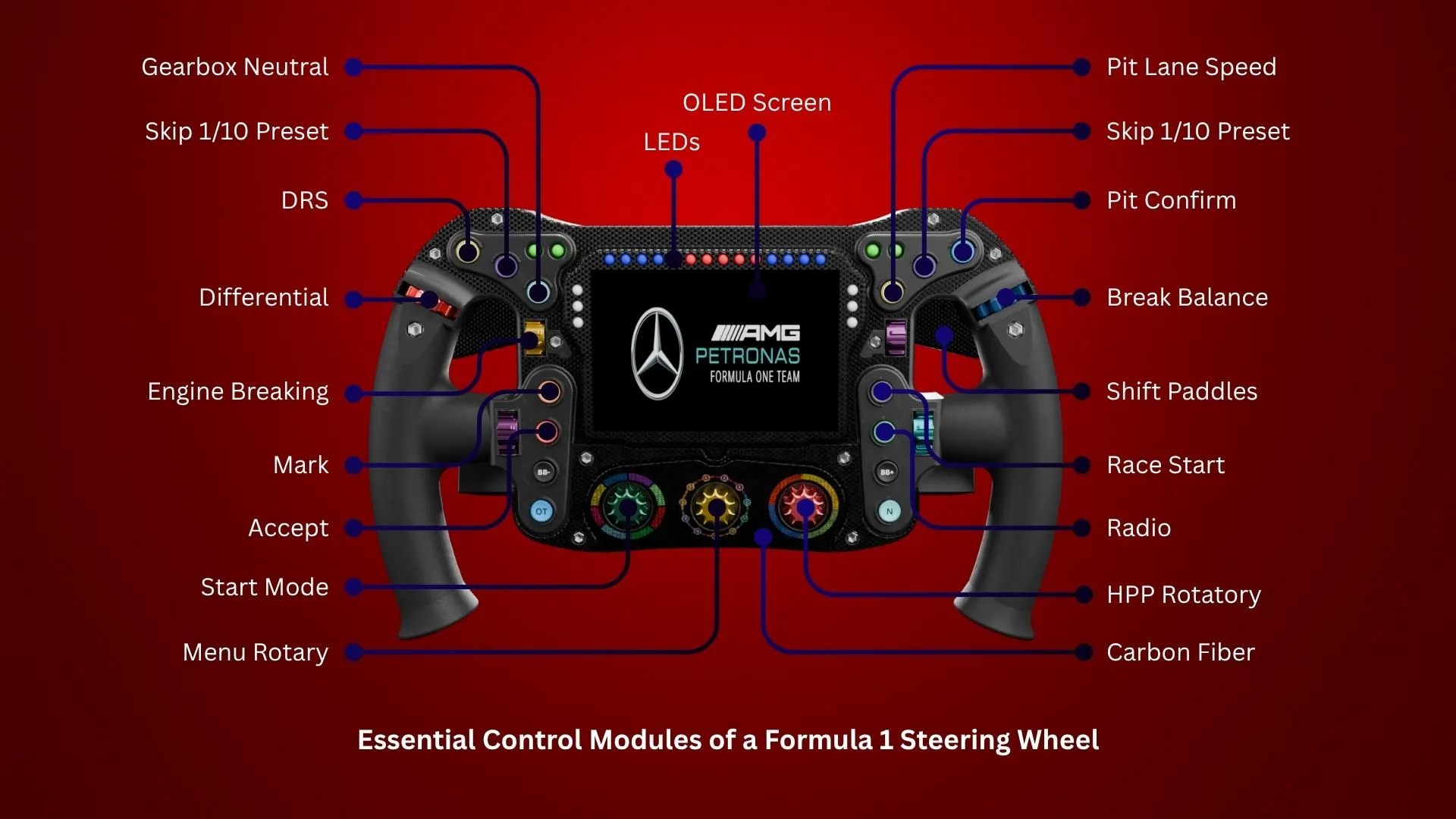

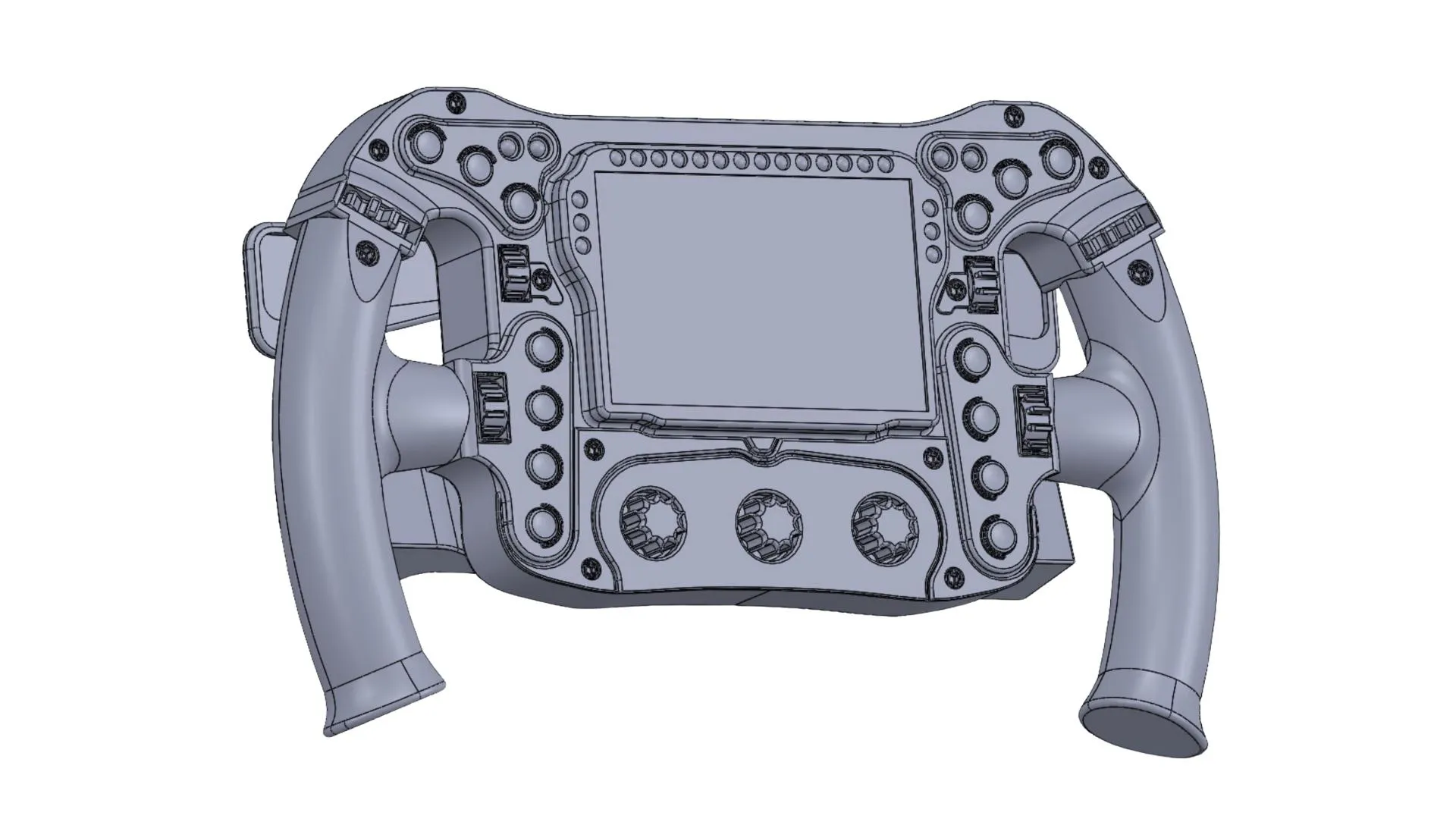

Highly detailed CAD model of a Formula 1 steering wheel developed as part of a larger F1 project, focusing on precision geometry, full component integration, and realistic control layout.

Specifications

  • Model Type: Full assembly with detailed components
  • Source: Image reference and reverse engineering
  • Detail Level: High-fidelity surface and component modeling
  • Build Time: ~16 hours

Design Constraints

  • Reconstruct complex control layout from image references
  • Maintain symmetry and proportional accuracy across the model
  • Integrate multiple small components without geometric conflict
  • Ensure clean surface transitions across complex curved regions

Design Approach

The model was developed using detailed reference images and reverse engineering techniques to accurately capture the layout and structure of a modern Formula 1 steering wheel.

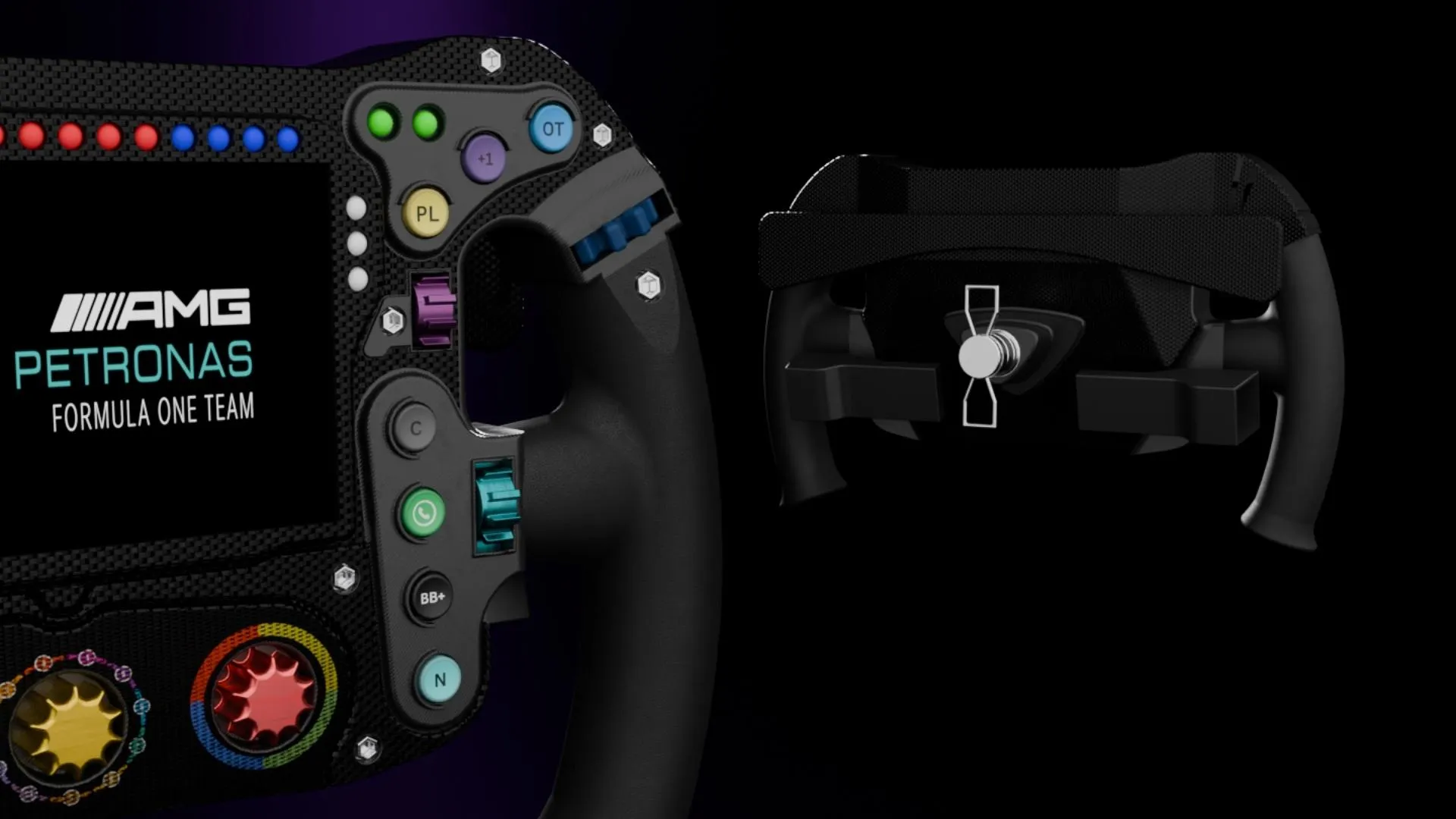

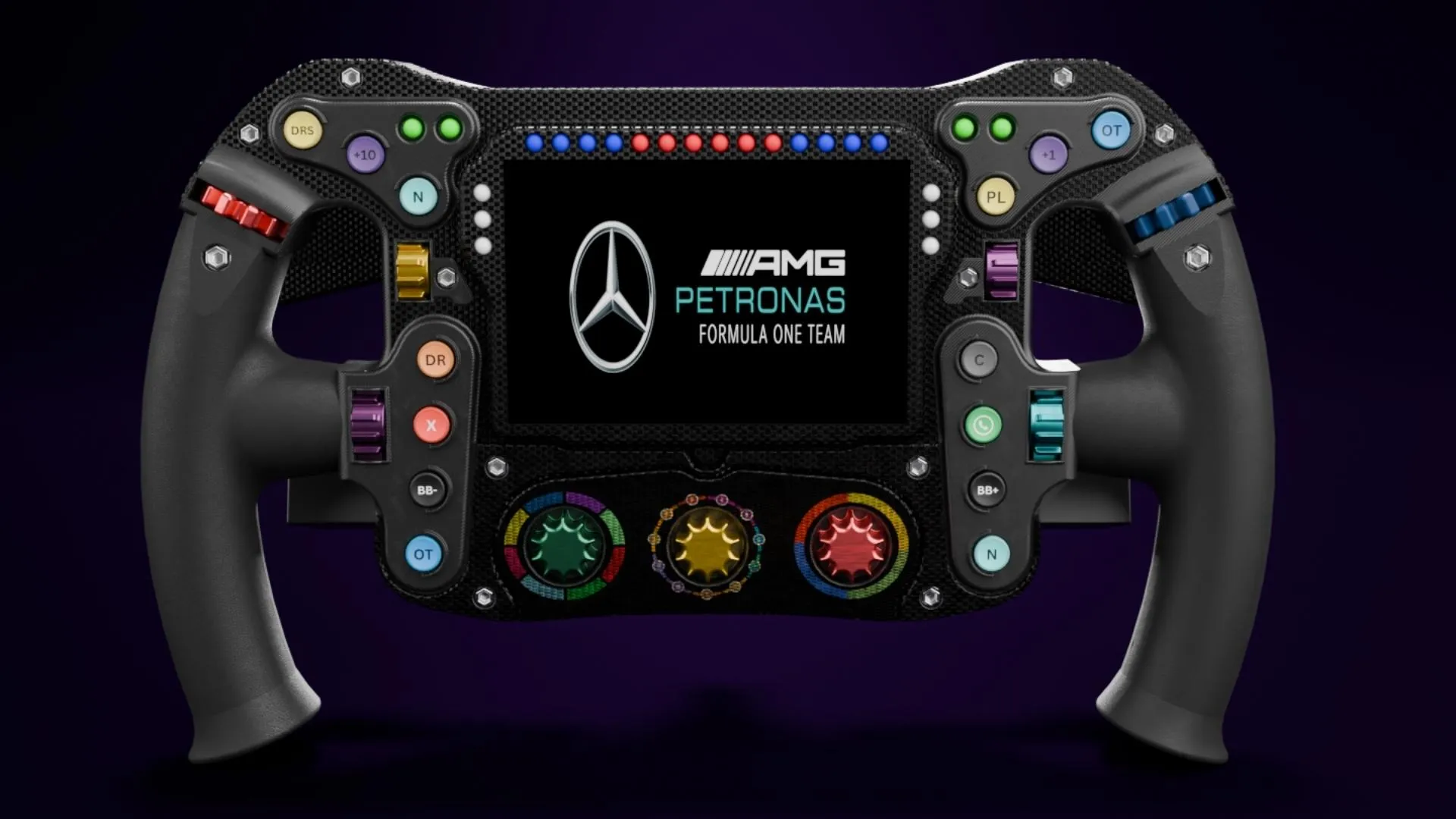

Individual components including buttons, rotary switches, grips, and display elements were modeled and assembled to create a complete and visually consistent system.

Key Features

  • Complete assembly including all visible control elements
  • Extremely detailed modeling of buttons, dials, and switches
  • Symmetry-driven design ensuring geometric consistency
  • High-quality surface transitions across complex shapes

Outcome

Delivered a high-fidelity steering wheel model demonstrating advanced CAD capability in handling complex assemblies, detailed components, and precise surface modeling.
